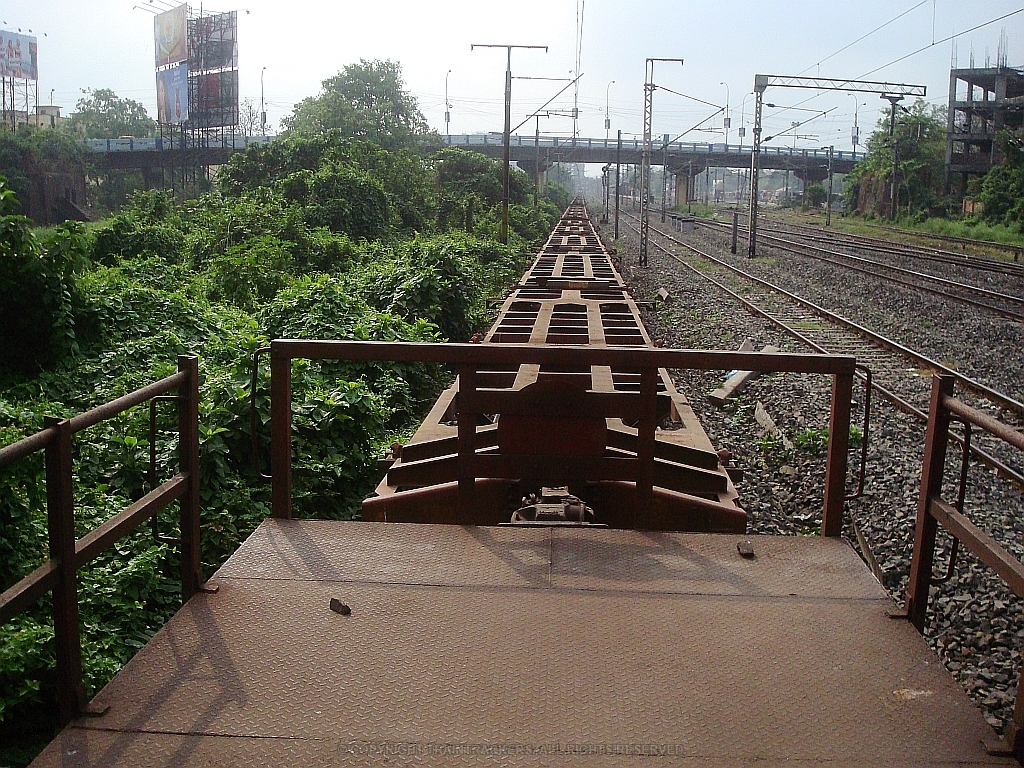

Bogie Low Platform Container Flat Wagons --- These wagons has been designed for transportation of 20' & 40' long ISO containers at an operating speed of 100kmph. Lower height of under frame (floor) from R.L. has been achieved with introduction of hybrid design of bogie frame, bolster and use of smaller diameter wheel in LCCF 20(C) bogie with single pipe graduated release air brake system. This bogie type is cast steel design suitable for wide jaw adapter & integral fiat type centre pivot. Bottom pivot integral with bolster, flat type top pivot separate bolted to underframe. The side bearer is friction type with coil springs in a cast steel housing. Non-metallic brake shoe. Equipped with Automatic Load Sensing Device (LSD), Automatic Twist Locks & Spring Loaded Side Bearer Arrangements. It usually form a Wagon unit which consist of 2 A-cars at both ends & 3 B-cars in the middle. Type - BLC.
